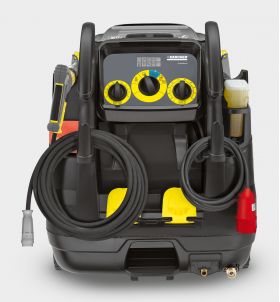

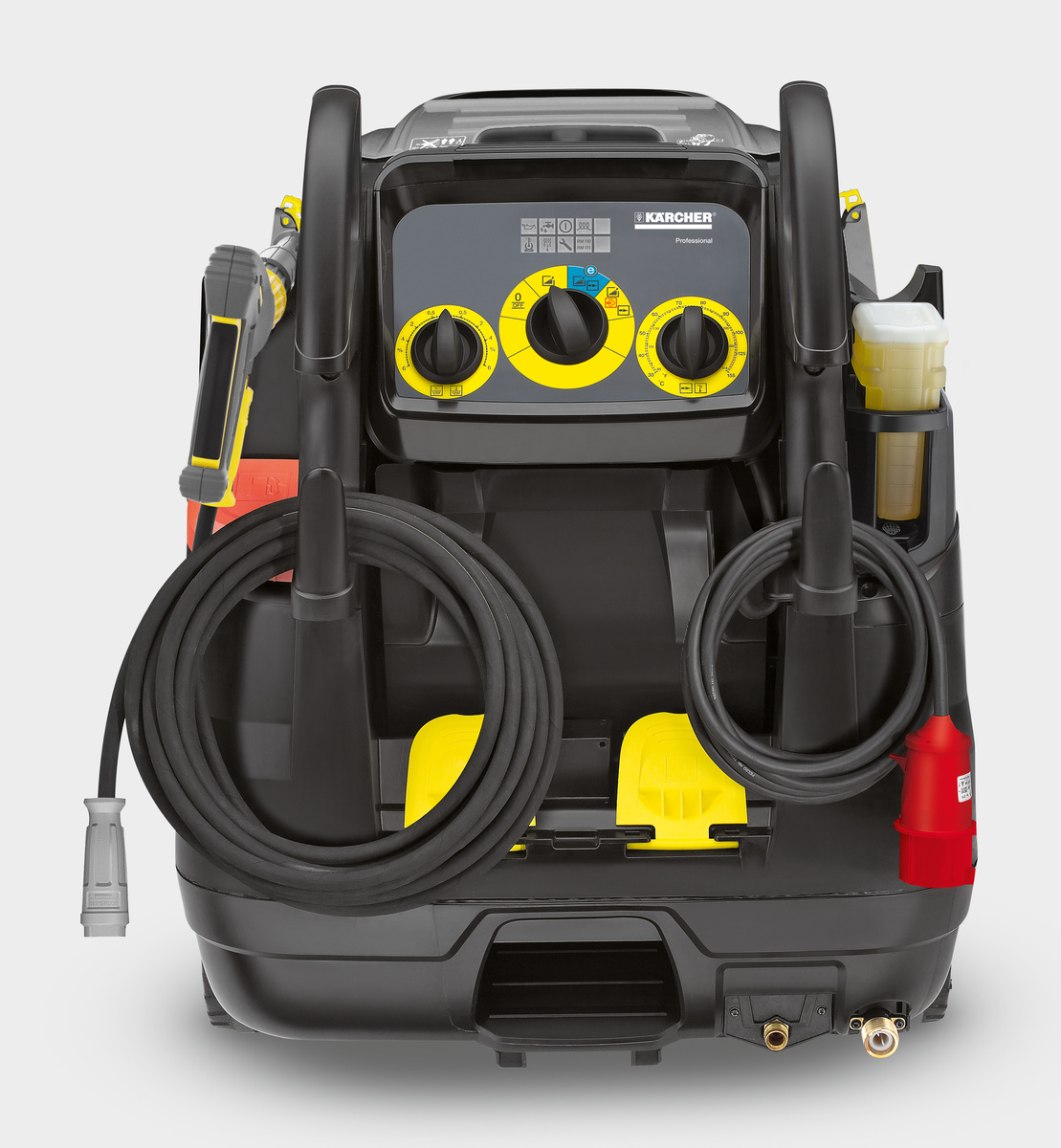

Kärcher’s HDS middle class hot water pressure washers reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The HDS 7/10-4 M features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs.
Technical Data
- Current type (Ph/V/Hz)1/240/50
- Flow rate (l/h)350-700
- Pressure (bar/MPa)30-100/3-10
- Max. temperature (°C)80-155
- Power rating (kW)3,4
- Consumption fuel oil (kg/h)4,6
- Fuel tank (l)25
- Power cable (m)5
- Weight without accessories (kg)155
- Weight (with accessories) (kg)159,3
- Weight incl. packaging (kg)171.3
- Dimensions (L x W x H) (mm)1330 x 750 x 1060
Standard Accessories
- Exhaust gas temperature limiter
- Pressure switch control
- Control panel with indicator lamps
- Low fuel cut-out
- Steam mode
- Spray lance, 1050 mm
- Trigger gun, EASY!Force Advanced
- Integral fuel and detergent tank
- Power nozzle
- SDS system
- Electronic service control with LED display
- Servo Control
- Infinitely variable pressure and water flow control on the unit
- Dry running protection
- Scale inhibitor
- Low-speed 4-pole motor
- Two detergent tanks
