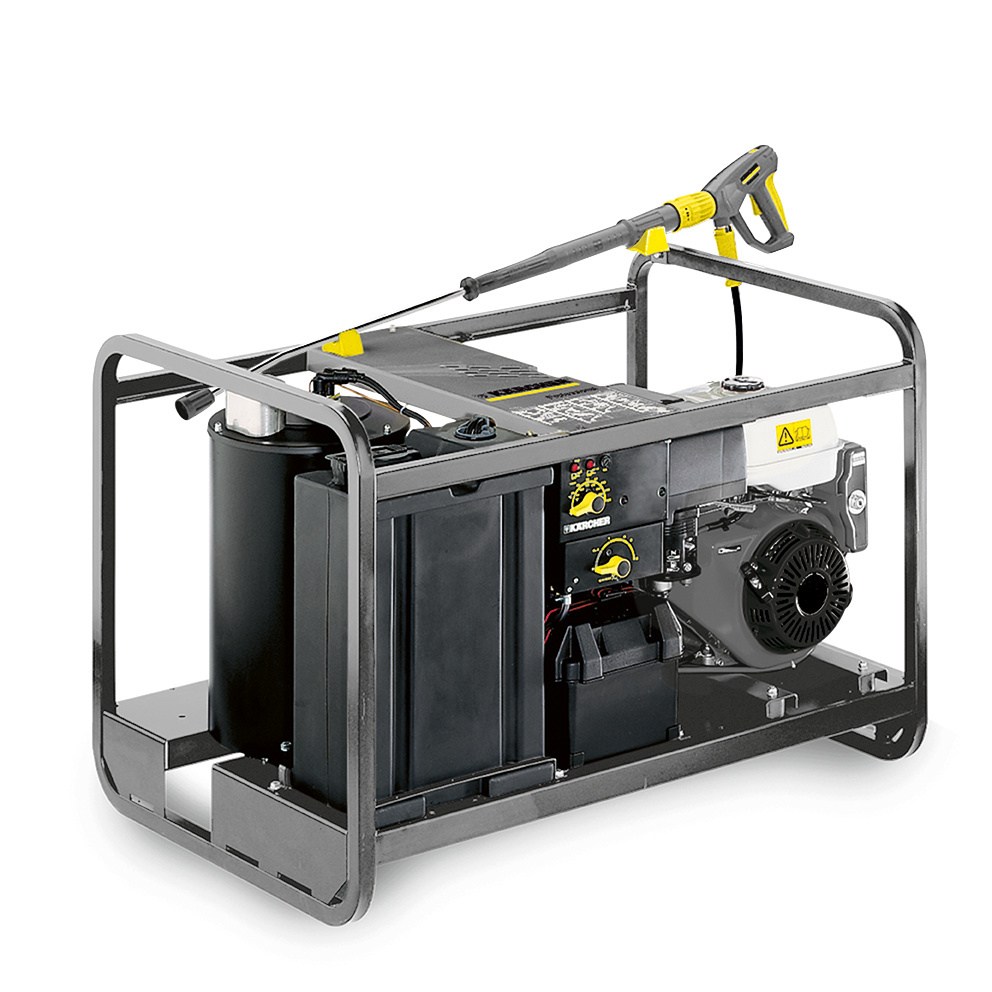

The HDS 1000 DE is a powerful mobile hot water high-pressure cleaner built in a sturdy tubular frame offering all-round protection for components. Ideal for cleaning applications where there is no power supply available. With a 10 HP Yanmar diesel engine featuring electric start function, the HDS 1000 DE offers high water flow and pressure rates ideal for applications where high performance cleaning is required. This unit is best suited for the plant hire and construction industry, agricultural applications as well as use in the public sector.
Technical Data
- Pressure (bar/MPa)40-200/4-20
- Consumption fuel oil (kg/h)5,6
- Flow rate (l/h)450-900
- Fuel tank (l)5,5
- Power rating (kW/PS)7,4/10
- Engine typeL 100 N / Diesel
- Engine manufacturerYanmar
- Water feed temperature-
- Max. temperature (°C)80-98
- Weight without accessories-
- Weight (with accessories) (kg)188,3
- Weight incl. packaging (kg)194,1
- Dimensions (L x W x H) (mm)1100 x 750 x 785
Standard Accessories
- Exhaust gas thermostat
- Pressure cut-off
- Low fuel cut-out
- Galvanized and powder coated chassis
- Three piston axial pump with stainless steel pistons, with stainless steel pistons
- Spray lance, 1050 mm
- Electric starter
- Trigger gun, EASY!Force Advanced
- Trigger gun
- Power nozzle
- Cage frame
- Soft Damping System (SDS)
- Servo Control
- Sturdy tubular steel frame for handling with crane
- Spray lance
- Scale inhibitor
